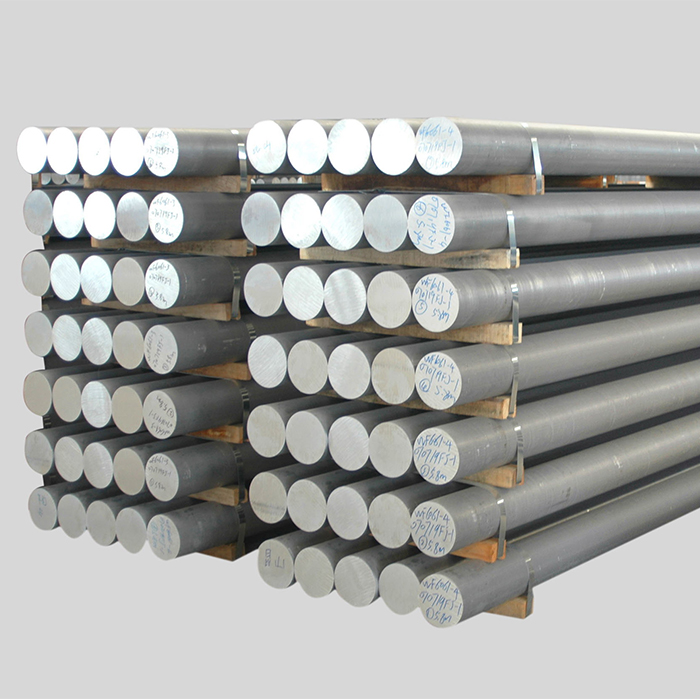

Tungsten Alloy Steel Bar and Rod

Tungsten Alloy Bar is a high-performance material made by high-temperature powder metallurgy technology, with tungsten (W) as the matrix and nickel (iron), copper, molybdenum and other elements added. It combines the extreme physical properties of tungsten with the technological advantages of other metals, and plays an irreplaceable role in military, industrial, medical and other fields.

Core Features

1.  High density and high strength

-The density reaches 16.5-18.75 g/cm ³ (more than 50% higher than lead), providing excellent inertial impact force, suitable for kinetic weapons and counterweight systems.

-The tensile strength is 105~145 KSI (approximately 724~1000 MPa), and the elongation is 5%~33%, combining toughness and rigidity.

2. Extreme heat resistance

-The melting point is as high as 3410 ℃, the coefficient of thermal expansion is low (4.5 × 10 ⁻⁶/K), and the size is stable at high temperatures. It is suitable for high-temperature furnace heating elements, rocket nozzles, etc.

3. Functional complexity

-Conductive and Thermal Conductivity: Copper tungsten alloy (such as WCu70) has a conductivity of 35%~45% IACS and is used for electrodes and electronic packaging.

-Radiation shielding: Highly capable of absorbing X-rays and gamma rays, used in medical equipment such as Co60 therapy machines.

-Environmental safety: non-toxic and pollution-free, replacing toxic heavy metals such as lead.

Manufacturing Process

1. Powder metallurgy technology

- Process: Powder making → Wet grinding and mixing → Drying → Compression molding → Sintering (hydrogen/vacuum environment) → Post processing (rotary forging, polishing).

-Advantages: Avoiding the problem of coarse grains in the melting process, achieving uniform organization and high precision (diameter deviation ± 0.03mm~± 0.25mm).

2. Surface treatment

-The sintered rod is silver gray in color, the surface of the forged rod is oxidized to black, and the polished rod restores its metallic luster.

Core Application Areas

1. Military and Aerospace Industry

-Kinetic energy weapon: Space based tungsten rods are projected at ultra-high speeds from high altitudes and can penetrate ship armor (such as the X-37B weapon system).

-Armor piercing bullet: Used as a core material, it has better penetration ability than uranium alloy and no radioactive contamination.

2. High end industry

-High temperature components: glass melting electrodes, vacuum furnace heating elements (temperature resistance>2000 ℃).

-Tool manufacturing: Processing micro drills and CNC milling cutters with hard alloy rods (YL50), suitable for difficult to cut materials such as titanium alloys.

-Weighting System: Aircraft blade balancing components, nuclear submarine gyroscope rotors, utilizing high-density to reduce volume.

3. Healthcare and Energy

-Radiation protection: geological exploration gamma source container, linear accelerator shield.

-Electrode Materia: Copper tungsten alloy electrodes are used for spot welding and electrical discharge machining, with a lower loss rate than pure copper.

Specifications and Standards

-Diameter range: 0.5~200 mm, divided into black tungsten rod (rough machining) and polished tungsten rod (precision machining).

-Implementation standard: China GB/T 4187-2017, which specifies the requirements for diameter deviation (such as deviation ± 1.0% for a 3mm rod) and roundness.

Challenge and Development

-Processing difficulty: High room temperature brittleness (plastic brittle transition temperature of 150-450 ℃), requiring thermal processing to improve; Adding rhenium (Re) can enhance toughness.

-Cost factor: Rare earth elements (such as yttrium) enhance high-temperature performance, but increase costs and limit civilian promotion.

Future trends

Optimizing copper/tungsten interface sintering technology to enhance conductivity; Developing nanocrystalline alloys to reduce brittleness; Expand new scenarios such as the inner wall materials of nuclear fusion reactors.

Tungsten alloy rods, endowed with the "king of metals," continue to break through limits in cutting-edge fields - from deep space kinetic energy weapons to micrometer level drill bits, their value is constantly reshaping with technological evolution.
