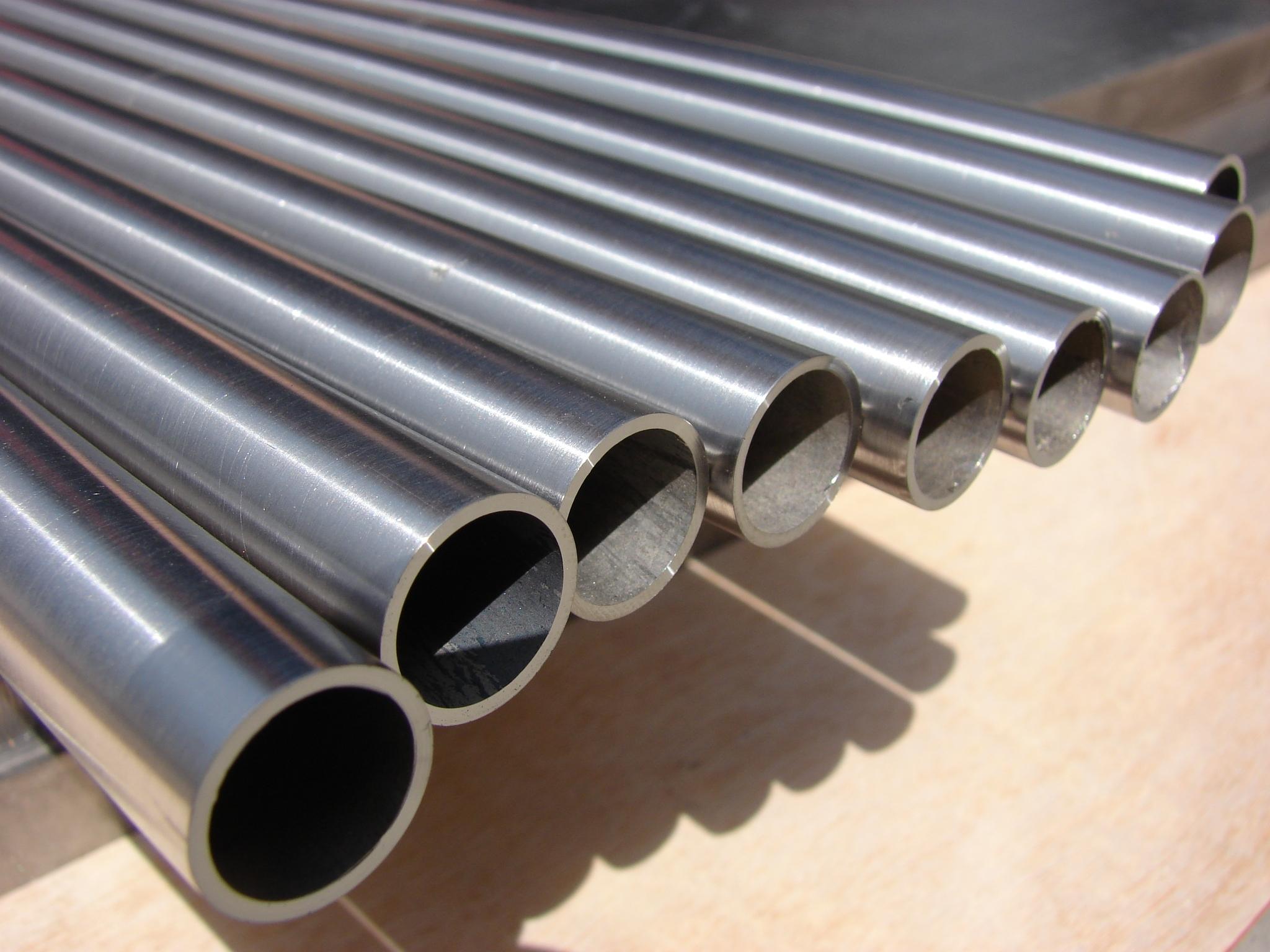

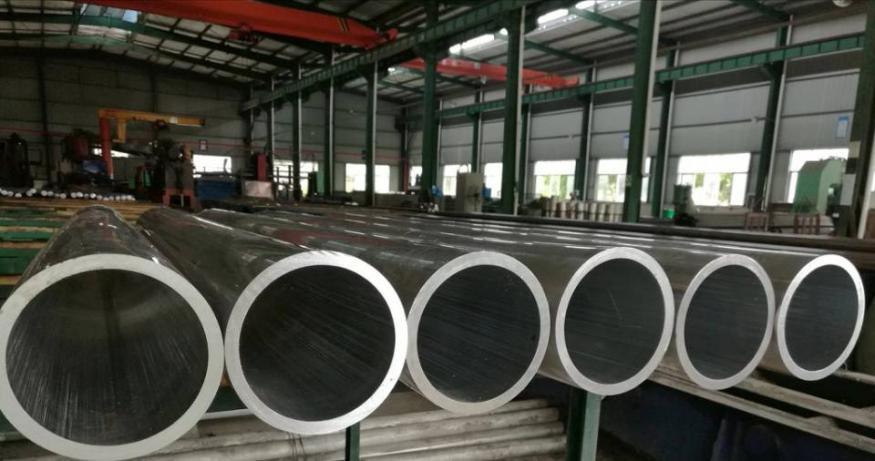

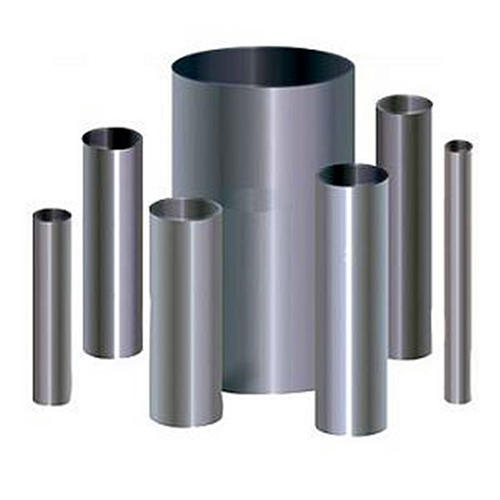

Tungsten Alloy Steel Tube and Pipe

Tungsten Alloy Tube is a high-performance pipe made from tungsten (W) as the matrix (usually 85-97%), with the addition of nickel, iron, copper and other elements, through powder metallurgy and plastic processing. Its core value lies in its irreplaceability in extreme environments - integrating high-density, high melting point, and anti ablation properties, becoming the "ultimate material" in aerospace, military, nuclear and other fields.

Core Performance and Implementation Mechanism

|* * Characteristics * * | * * Key Data * * | * * Reinforcement Principle**

| Ultra high melting point| 3410 ℃ (pure tungsten) | Strong covalent bonding of tungsten atoms|

| Ultimate density  | 16.5-18.5 g/cm ³ (approximately 2.3 times that of steel) | High atomic weight of tungsten+high alloy dense structure|

| Anti erosion  | Arc erosion rate<0.1mm/thousand times (WCu70) | Copper phase evaporation heat absorption+tungsten skeleton shape maintenance|

|Radiation shielding capability | Gamma ray attenuation coefficient 30% higher than lead | Dual effect of high atomic number (Z=74)+high density|

| High temperature strength  | Tensile strength at 2000 ℃>100 MPa | Recrystallization temperature>1400 ℃ (doped La ₂ O3 increased to 2200 ℃)|

Flow alloy system and selection logic

|* * Type * * | * * Typical brand * * | * * Composition characteristics * * | * * Applicable scenarios * * | * * Advantages * *|

|Tungsten Nickel Iron System | W90Ni6Fe4 | W 90%, Ni 6%, Fe 4% | Aerospace Attitude Control Counterweight Tube | High Density+Good Toughness|

|Copper tungsten series | WCu70/30 | W 70%, Cu 30% | Electric spark electrode tube/rocket nozzle liner | Conductive and heat-conducting+anti ablation|

 Doped tungsten system | WL10 | W 99.9%, La ₂ O3 0.1% | High temperature furnace heating element tube | Creep resistance+ductility ↑ 200%|

| Pure tungsten series | W1 | W ≥ 99.95% | First wall tube of nuclear fusion device | Anti neutron irradiation damage|

Note : Copper tungsten tube (WCu70) has a conductivity of 35-45% IACS, combining the high temperature resistance of tungsten metal with the heat dissipation ability of copper.

Manufacturing process breakthrough

Powder metallurgy+plastic processing

-Process:

`Tungsten powder mixed binder → Isostatic pressing → Pre sintering (1200 ℃) → High temperature sintering (2200-2800 ℃) → Hot forging/tube rolling → Annealing`

-Difficulties:

-Pure tungsten has high brittleness: requires hot processing above 1500 ℃ (plastic brittle transition temperature>400 ℃)

-Thin walled tube control: When the wall thickness is less than 1mm, multiple passes of warm rolling (600-800 ℃) are required

2. Special molding technology

-Chemical Vapor Deposition (CVD):

-Preparation of ultra-thin tungsten tubes (wall thickness 0.05-0.5mm) for semiconductor ion implantation rings

-Purity>99.999%, no grain boundary defects

-Plasma spray forming:

-Directly manufacturing special-shaped pipe fittings (such as conical nozzles) to save machining costs

 Extreme working condition solution

|* * Failure Risk * * | * * Application Scenarios * * | * * Material and Structural Countermeasures * *|

|High temperature deformation | Rocket engine nozzle | WCu gradient tube (inner wall W80Cu20 → outer wall W60Cu40)|

|Plasma erosion | Tokamak first wall | Tungsten fiber-reinforced tungsten based composite material (Wf/W)|

| Thermal shock cracking | Leading edge tube of hypersonic aircraft | Nanotwinned tungsten (fracture toughness ↑ 300%)|

|Neutron irradiation embrittlement | Nuclear reactor target tube | Addition of Re/TiC (grain boundary strengthening)|

Core application areas

|* * Domain * * | * * Component Case * * | * * Material Solution * * | * * Performance Requirements * *|

| Aerospace and Military Industry | Solid Rocket Motor Throat Lining Tube | WCu75/25+Internal Groove Cooling | Resistant to 3500 ℃ Gas Flow>120 seconds|

| Nuclear Energy Technology | Nuclear Fuel Cladding Tube | W-5Re Alloy+Inner Wall SiC Coating | Resistance to 1200 ℃ Molten Metal Corrosion|

| High end manufacturing | Deep hole spark electrode tube | WCu50/50 (thin wall 0.3mm) | Aperture accuracy ± 0.005mm|

| Medical equipment | Radioactive particle implantation needle tube | W95Ni3Fe2 (outer diameter 1.2mm) | Rigid support+shielding of beta rays|

| High temperature equipment | Sapphire crystal growth furnace thermal field sleeve | WL10 doped tungsten tube | 2200 ℃ vacuum environment>1000 hours|

Technical bottlenecks and costs

-Proportion of processing cost:

-Raw material (tungsten powder): 30-40%

-Sintering+hot processing: 50-60%

-Surface precision grinding: 10-15%

-Typical price gradient:

| Type | Diameter (mm) | Wall thickness (mm) | Unit price|

|Pure tungsten tube | Φ 20 | 3 | 1500-2000|

|WCu70 electrode tube | Φ 10 | 1 | 800-1200|

|CVD ultra-thin tungsten tube | Φ 50 | 0.1 |>50000|

Breakthrough in cutting-edge technology

1. Additive Manufacturing :

-Electron beam melting (EBM) forming porous tungsten tubes (porosity 50%) for aerospace lightweight weighting, with a density reduced to 9.5g/cm ³.

2.  Nano reinforcement :

-Carbon nanotubes (CNT) reinforced tungsten matrix, increasing the number of thermal shock cycles from 3 to 50 (1600 ℃) ↔ Room temperature).

3.  Intelligent Composite Structure:

-Tungsten/copper/molybdenum gradient functional tube (prepared by laser cladding), achieving precise control of axial thermal expansion coefficient (6.5 → 4.2 × 10 ⁻⁶/K).

The Golden Rule of Selection

-To resist erosion, choose copper tungsten tube (WCu70): suitable for electrical discharge machining/rocket nozzle;

-To achieve lightweight, choose nickel iron tungsten tube (W90Ni6Fe4): suitable for aerospace counterweights;

-Ultra high temperature doped tungsten tube (WL10): suitable for core components of high-temperature furnaces;

-To resist radiation, choose rhenium tungsten tube (W5Re): suitable for nuclear fusion devices.

Friendly Warning Tips:

Tungsten pipes are brittle below 400 ℃! Mechanical impact must be avoided during assembly - a satellite thruster suffered losses of over $200 million due to tungsten tube cracking caused by cold assembly. **Thermal design is the lifeline of tungsten tube applications!
