Austenitic Stainless Steel Wire and Mesh

We provide various steel wire and mesh in different shapes and grades.

Send Inquiry

Product Details

Austenitic Stainless Steel Wire

Product Description
1. Normal shapes like: stainless steel wire, stainless steel wire mesh, stainless steel wire rod

2. Material available: 201, 202, 301, 303, 304, 304L, 304N, 304LN, 305, 309S, 310S, 316, 316L, 316N, 316LN, 316Ti, 316Lmod, 317, 317L, 317LMN, 321, 347, 725LN, 904L, 253MA, 254MO, 254MA, 4529, 4565, LDX2101, UNS S31254, XM-19A, Nitronic 50, Nitronic 60 and so on.

3. Diameter 0.025mm-15 mm, Length according to the requirement

4. Surface: black, hot rolled hydrogen, bright, soft, hard and so on

5. Process: cold and hot drawn

Grade Number of Austenitic stainless steel in Different Countries

Chemical Composition of Austenitic stainless steel

Stainless steel material chemical composition comparison table
Steel Grade	chemical composition
Steel Grade	C	Cr	Ni	Mn	P	S	Mo	Si	N
201	≤0.15	16-18	3.5-5.5	5.5-7.5	≤0.060	≤0.030		≤1.0	≤0.25
201L	≤0.16	16-18	3.5-5.5	5.5-7.5	≤0.060	≤0.030		≤1.0	≤0.25
202	≤0.17	17-19	4.00-6.00	7.5-10.00	≤0.060	≤0.030		≤1.0	≤0.25
204	≤0.18	15-17	1.5-3.5	7.00-9.00
301	≤0.19	16-18	6.00-8.00	≤2.00	≤0.065	≤0.030		≤1.0
302	≤0.20	17-19	8.00-10.00	≤2.00	≤0.035	≤0.030		≤1.0
303	≤0.21	17-19	8.00-10.00	≤2.00	≤0.020	≤0.030		≤1.0
304	≤0.22	17-19	8.00-10.00	≤2.00	≤0.035	≤0.030		≤1.0
304L	≤0.23	18-20	8.00-10.00	≤2.00	≤0.035	≤0.030		≤1.0
309S	≤0.24	22-24	12.00-15.00	≤2.00	≤0.035	≤0.030		≤1.0
310S	≤0.25	24-26	19.00-22.00	≤2.00	≤0.035	≤0.030		≤1.0
316	≤0.26	16-18.5	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.0
316L	≤0.27	16-18	12.00-15.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.0
321	≤0.28	119	8.00-11.00	≤2.00	≤0.035	≤0.030		≤1.0

Common Grade of Stainless Steel Wire :

TYPE	C	Si	Mn	P	S	Ni	Cr
AISI302	0.15	1	2	0.045	0.03	8.0-10.0	17.0-19.0
304	0.08	1	2	0.045	0.03	8.0-10.0	18.0-20.0
304HC	0.08	1	2	0.045	0.03	8.0-10.0	17.0-19.0
304L	0.3	1	2	0.045	0.03	9.0-13.0	18.0-20.0
316	0.08	1	2	0.045	0.03	10.0-14.0	16.0-18.0
316L	0.03	1	2	0.045	0.03	12.0-15.0	16.0-18.0
321	0.08	1	2	0.045	0.03	9.0-13.0	17.0-19.0
430	0.12	0.75	1	0.04	0.03	-----------	16.0-18.0
430F	0.12	1	1.25	0.06	0.15	-----------	16.0-18.0

Size Tolerance :

Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance (mm)
0.020-0.049	+0.002/-0.001	0.001
0.050-0.074	0.002	0.002
0.075-0.089	0.002	0.002
0.090-0.109	+0.003/-0.002	0.002
0.110-0.169	0.003	0.003
0.170-0.184	0.004	0.004
0.185-0.199	0.004	0.004
0.200-0.299	0.005	0.005
0.300-0.310	0.006	0.006
0.320-0.499	0.006

Applications for industrial :
1. Aerospace
2. Food
3.Brewing industry
4.Chemical products
5.Housing construction and decoration

6.Kitchen equipment
7.Shipbuilding
8.Automobile
9.Transportation equipment

10.Electronics

Finished Products

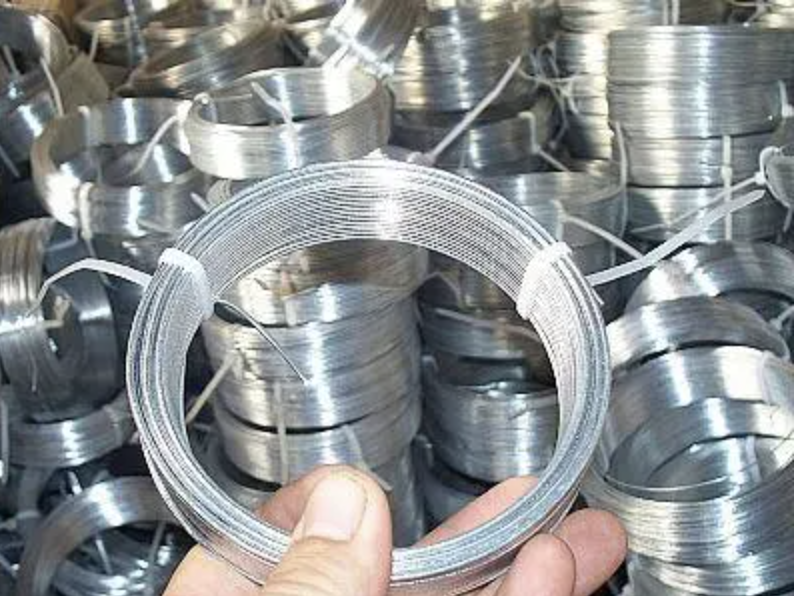

Stainless Steel Wire

Stainless Steel Wire Rod

Stainless Steel Wire Mesh

Packing
Export standard seaworthy packing, or as the customers' requirement.

Our advantages
1. Technician team: over 30 years of experience in steel industrial application.
2. Rich source of steel material abroad and locally.
3. Export staff embodied with fluent English communication skills, good knowledge in steel industries, and we also staffed with sales can speak Russian, Spanish and Japanese for better communication.
4. Providing wide range of special sizes and rare steel grades unavailable elsewhere

5. Short leading time and small batch orders are welcomed.
